Shell Thermoresistance
본문

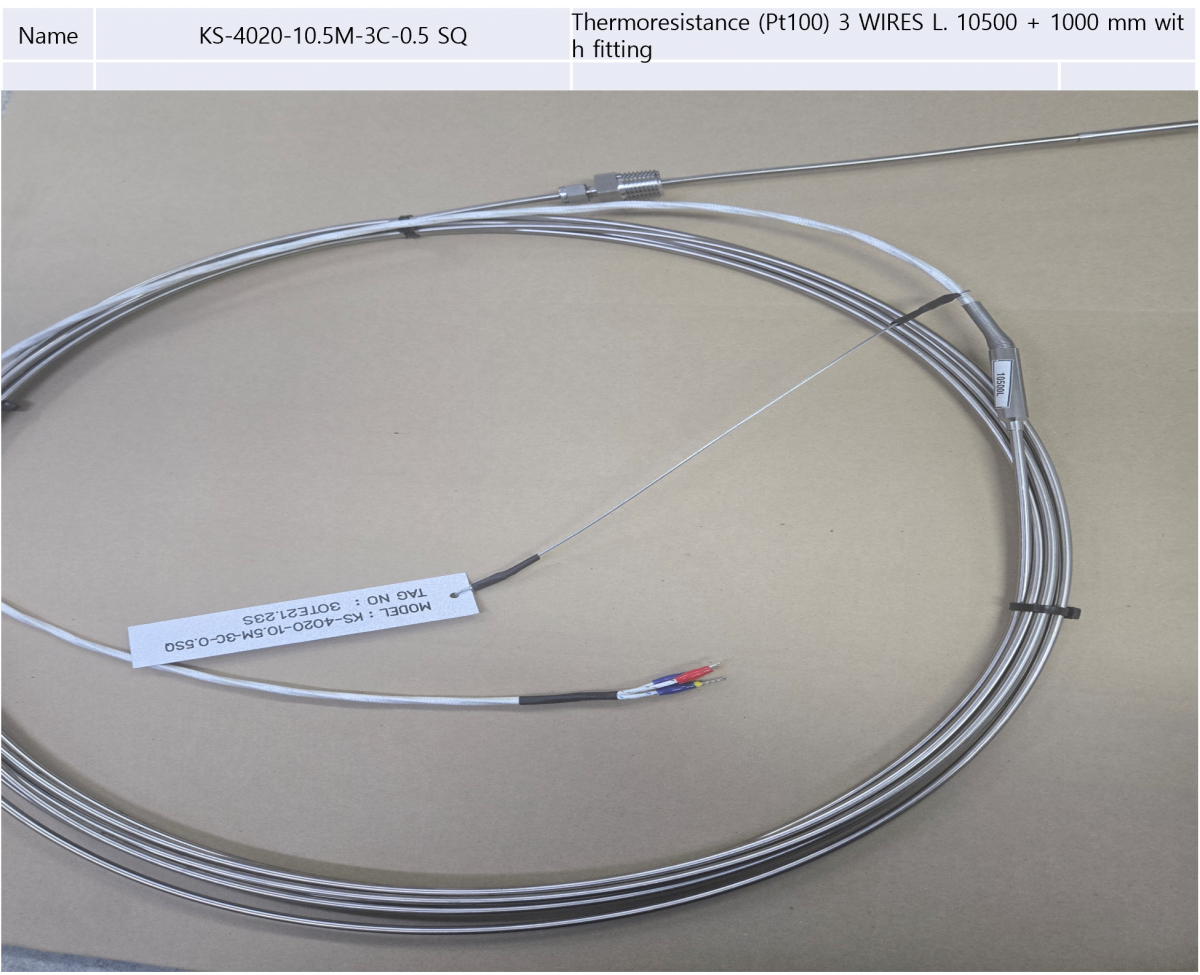

Model : KS-4020-10.5M-3C-0.5 SQ
Insulation materal for lead wires : Outer shield
- Sleeve Out dia.(Φd)(mm) : 11(St’d)
- Length “T” : 55(St’d)
Non head : Extension lead wire type
Element(Tolerence) : Pt 100Ω at o℃ (“A” Class)
Sheath material : 316L SUS
Sheath outer diameter(ΦD) : F9 : 4.8
Mounting type : As an option
Special tools : Compression fitting
Connection size(material : 316SS) : RC : NPT 1/2”
Sheath Material : 316SUS
Sheath Diameter : 4.8mm
Insulating Material : MgO insulation
Conductive material : Cu sec. 0.5sqmm
Lead copper wire : THOMFLEX-HTD 3*1.0sq Flexible cable, with Fiberglass, silicone rubber(200℃) insulated Tinplated copper jacket
Sensor type : 3 Wire, Single
Operating temperature : -50 ~ 400℃
Temperature tolerance : Class A in According to IEC751 (Class A = = ±(0.15 + 0.002*t)°C 또는 0ºC에서 100.00 ±0.06 Ω)
상품설명
Sheath resistance temp. detectorb : Extension lead wire typeInsulation materal for lead wires : Outer shield
- Sleeve Out dia.(Φd)(mm) : 11(St’d)
- Length “T” : 55(St’d)
Non head : Extension lead wire type
Element(Tolerence) : Pt 100Ω at o℃ (“A” Class)
Sheath material : 316L SUS
Sheath outer diameter(ΦD) : F9 : 4.8
Mounting type : As an option
Special tools : Compression fitting
Connection size(material : 316SS) : RC : NPT 1/2”
Sheath Material : 316SUS
Sheath Diameter : 4.8mm
Insulating Material : MgO insulation
Conductive material : Cu sec. 0.5sqmm
Lead copper wire : THOMFLEX-HTD 3*1.0sq Flexible cable, with Fiberglass, silicone rubber(200℃) insulated Tinplated copper jacket
Sensor type : 3 Wire, Single
Operating temperature : -50 ~ 400℃
Temperature tolerance : Class A in According to IEC751 (Class A = = ±(0.15 + 0.002*t)°C 또는 0ºC에서 100.00 ±0.06 Ω)
